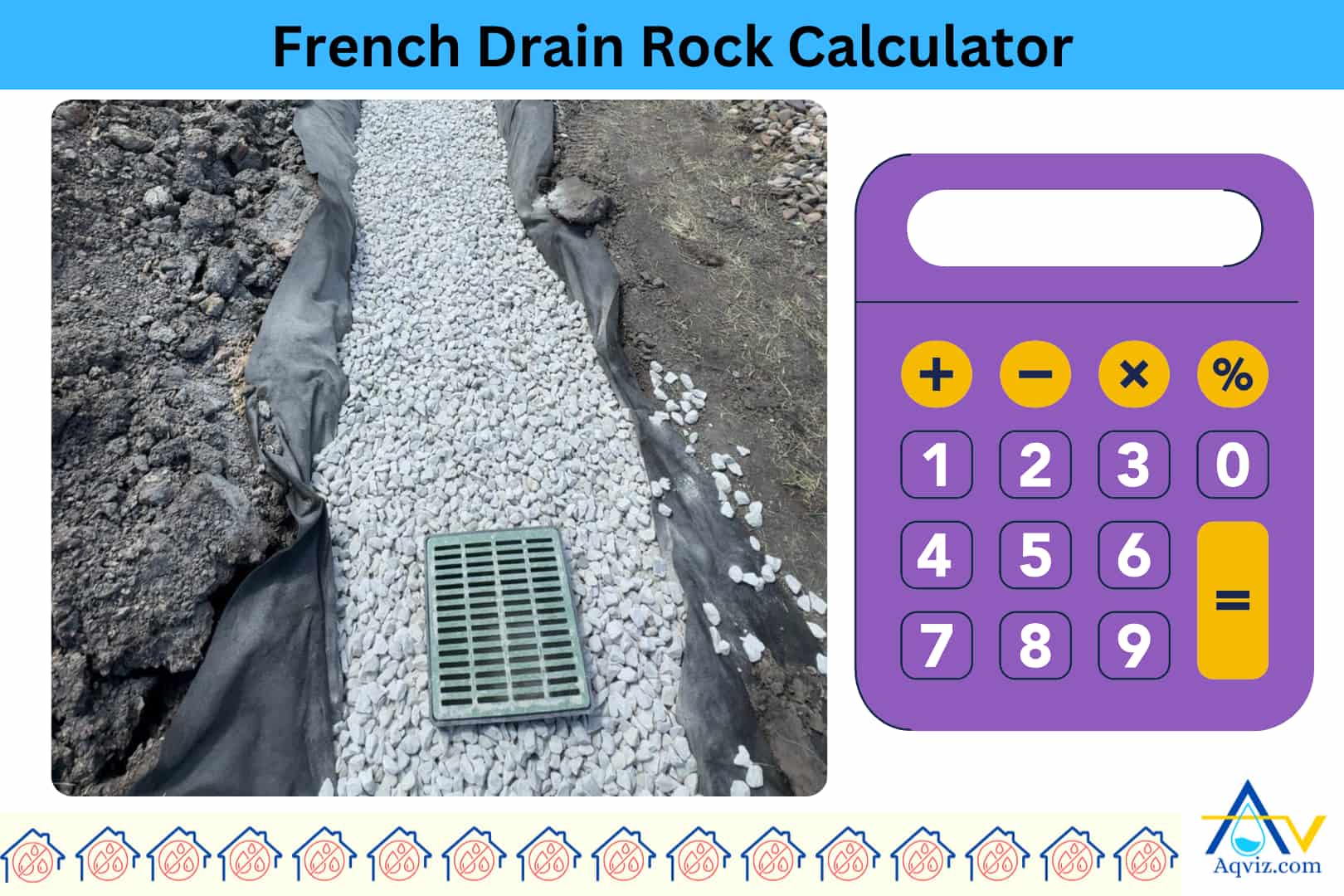

French drain rock calculator is a calculation tool that is used to calculate the amount of rock and cost for a French drain. The inputs of the French drain calculator are the length of the French drain, the width of the rock layer, the height/depth of the rock layer, and the perforated pipe diameter.
The outputs of the French drain calculator are the amount of rock by ton, bags, and cubic yards. To calculate the cost of the rock, the total unit volume is multiplied by the unit cost. Additionally, there is a 10% wastage factor.
How to Calculate French Drain Rock?
To calculate French drain rock, you should determine the net volume of gravel required to fill the trench around the perforated pipe. This means you should calculate the total trench volume and subtract the volume of the pipe, since it displaces some of the gravel space. This gives you an accurate estimate of the actual gravel required.
Step-by-Step Calculation for French Drain Rock
Step 1: Measure total Rock Layer dimensions:
- Length of trench (L) in feet
- Width of rock layer (W) in inches (typically 1 to 1.5 ft or 12-18 inches)
- Depth of the rock layer (D) in inches (typically 1.5 to 2 ft, 12-24 inches)
Step 2: Calculate total trench volume:
Total Volume (cubic feet) = Length × Width × Depth
Step 3: Calculate pipe volume for a 4-inch pipe (0.33 ft diameter):
Pipe Volume = Length × π × (0.165 ft)² ≈ Length × 0.0856
Step 4: Subtract pipe volume from trench volume:
Net Gravel Volume = Total Trench Volume – Pipe Volume
Step 5: Convert to cubic yards:
Cubic yards = Net Gravel Volume ÷ 27
Example French Drain Rock Calculation:
For a trench 50 ft long, 1 ft wide, and 1.5 ft deep:
- Total trench volume = 50 × 1 × 1.5 = 75 cubic feet
- Pipe volume (4-inch diameter) = 50 × 0.0856 = 4.28 cubic feet
- Net gravel volume = 75 – 4.28 = 70.72 cubic feet
- In cubic yards = 70.72 ÷ 27 ≈ 2.62 cubic yards
- Add 10% wastage = 2.62 × 1.1 = 2.882 ≈ 2.9
- Final rock volume = 3 cubic yards
You should add 10% extra for compaction and leveling. In this case, order approximately 2.9 cubic yards of clean 3/4-inch (19 mm) angular gravel. Always round up slightly to ensure full trench coverage.
How to Calculate Cost for French Drain Rock?
To calculate the cost of the French drain rock, you should find the net rock volume as per the above calculation.
Then multiply it by the unit volume of the rock. The output will be tons, bags, and cubic yards. According to that, use unit values in the market.
What is French Drain Rock?
French drain rock is referred to as a layer of washed, angular gravel or crushed stone used to surround the perforated pipe in a French drain system. This rock creates a porous path that allows groundwater to flow freely into the pipe while filtering out debris and supporting proper drainage flow.
What Is the Best Rock Size for a French Drain?
The best rock size for a French drain is 3/4 inch (19mm) angular crushed stone. This size helps to create proper void space for water flow while resisting compaction. You should avoid using pea gravel, crushed concrete, and round river stones. Because they compact too tightly, and minimize the drainage capacity.

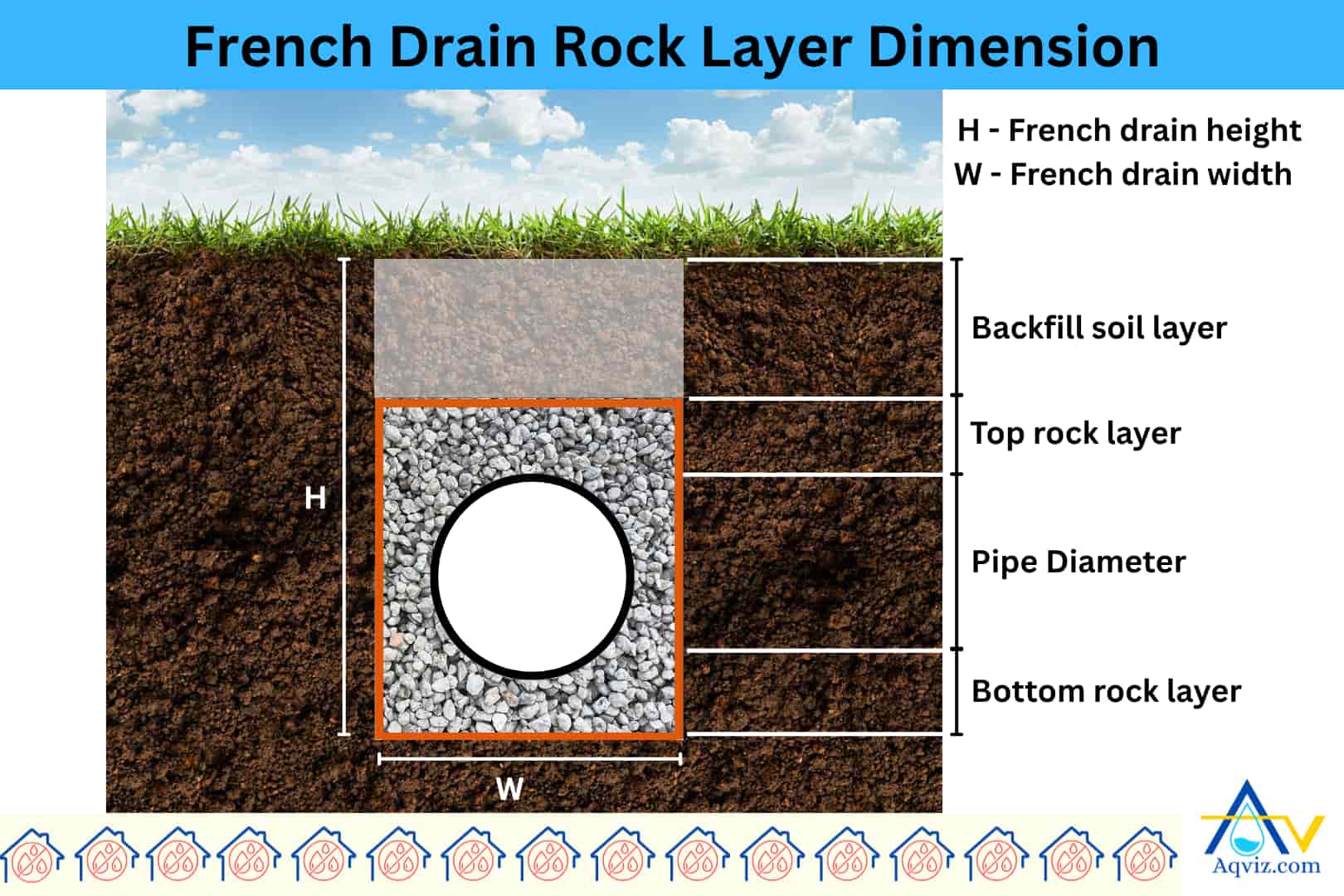

What are the Dimensions of the Rock Layer in the French Drain?
The recommended French drain rock layer dimensions are 12 inches in width and 18-24 inches in total depth for household purposes. For larger drainage volumes, like commercial purposes, you can increase the width and depth according to the perforated pipe. We highly recommend that you always check site-specific conditions like slope and groundwater. The calculator adjusts easily to your custom dimensions for accurate material estimates.
What is the French Drain Rock Height Above the Pipe?
The minimum height of the French drain rock layer should be 2 to 4 inches (5 to 10 cm) above the top of the pipe. It ensures that water can reach the pipe from above while preventing soil pressure from directly on the pipe.
What is the French Drain Rock Depth Below the Pipe?
The minimum height of the French drain rock layer should be 2 to 4 inches (5 to 10 cm) below the bottom of the pipe. This layer provides support, stabilizes the pipe, and allows water to flow evenly into the bottom perforations.
What is the Height of the French Drain Rock Layer?
The total height of the French drain rock layer is the sum of the height, depth, and diameter of the French drain. Here we separate these into the main 3 parts because in some cases we have to change the height and depth thickness. For example, if the French drain height is increased, it causes to increase upper surface area and it causes to increase in the efficiency of the drain. If you have a higher water table and higher rainfall, we highly recommend this for you.
Is this Calculator Valid for Non Uniform French Drains?
Yes, you can use this French drain rock calculator for an uneven French drain. You have to take average dimensions as inputs to get a reliable estimate. For sloped or uneven trenches, measure at several points and use a conservative average. This ensures you order enough rock without major overage or running short on-site.
Can I Use This Calculator for Both Domestic and Commercial Purposes?
Yes, it’s suitable for both residential and commercial French drains. You have to do just scale up the rock dimensions. We’ve used this for commercial buildings, parking lots, and schools, where accurate volume and gravel tonnage matter. The cost and material logic applies no matter the job size.
How Accurate is the Gravel Cost Estimate in this Calculator?
The gravel cost estimate in the French Drain Calculator depends on the units you enter for the rock volume, waste factor, and unit prices you enter in the calculator. When we created this tool, we considered the ideal conditions. In some cases, those can be varied with the environmental condition, material condition, and user. So we highly recommend you have expert knowledge when you start the project.
Does the Calculator Help Me Estimate Labor or Installation Time?
Not yet, but we’re working on it. Based on our fieldwork at Aqviz, a two-man crew averages 20-30 feet of French drain per day, depending on access and soil type. Future updates may include time and labor cost estimates.
