What are the 10 Types of French Drains?
A French drain is a drain system with uses these 4 main parts such as a perforated drain pipe, a gravel bed, a filter fabric, and a sump pump. The main task of the French drain is accumulating seep water, directing it to the sump basin and pump out. French drains can be used in different places for different purposes. According to that French drains are modified as well as combined with the regular drains. By considering these factors we can categorize French drains into 10 main types.
10 Types of French Drains
- Traditional perforated pipe french drain
- Curtain drain
- Trench drain
- Interior french drain
- Exterior foundation drain
- Gravel free french drain
- Surface french drain
- Subsurface french drain
- Sump pump-assisted french drain
- Downspout connected to French drain
1. Traditional Perforated Pipe French Drain

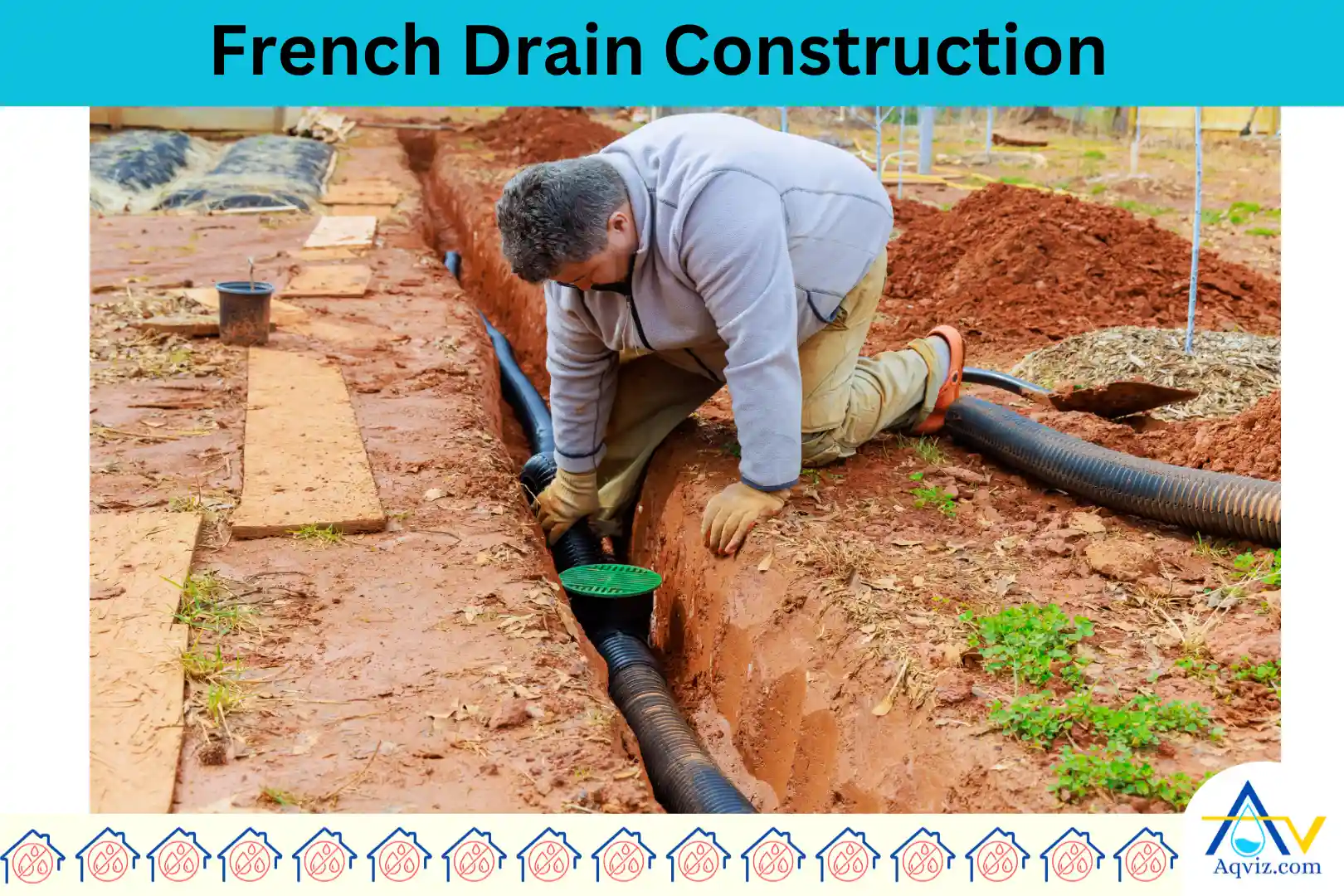

A traditional perforated pipe French drain consists of a trench filled with gravel and a perforated pipe that redirects excess water away from structures. Perforated pipe French drain is installed below ground the ground level and it collects and channels water through the pipe. This type is highly efficient for managing surface and subsurface water around foundations, basements, and yards. Its effectiveness depends on proper slope and drainage outlet placement. Perforated pipe French drain is a reliable solution for long term water management.

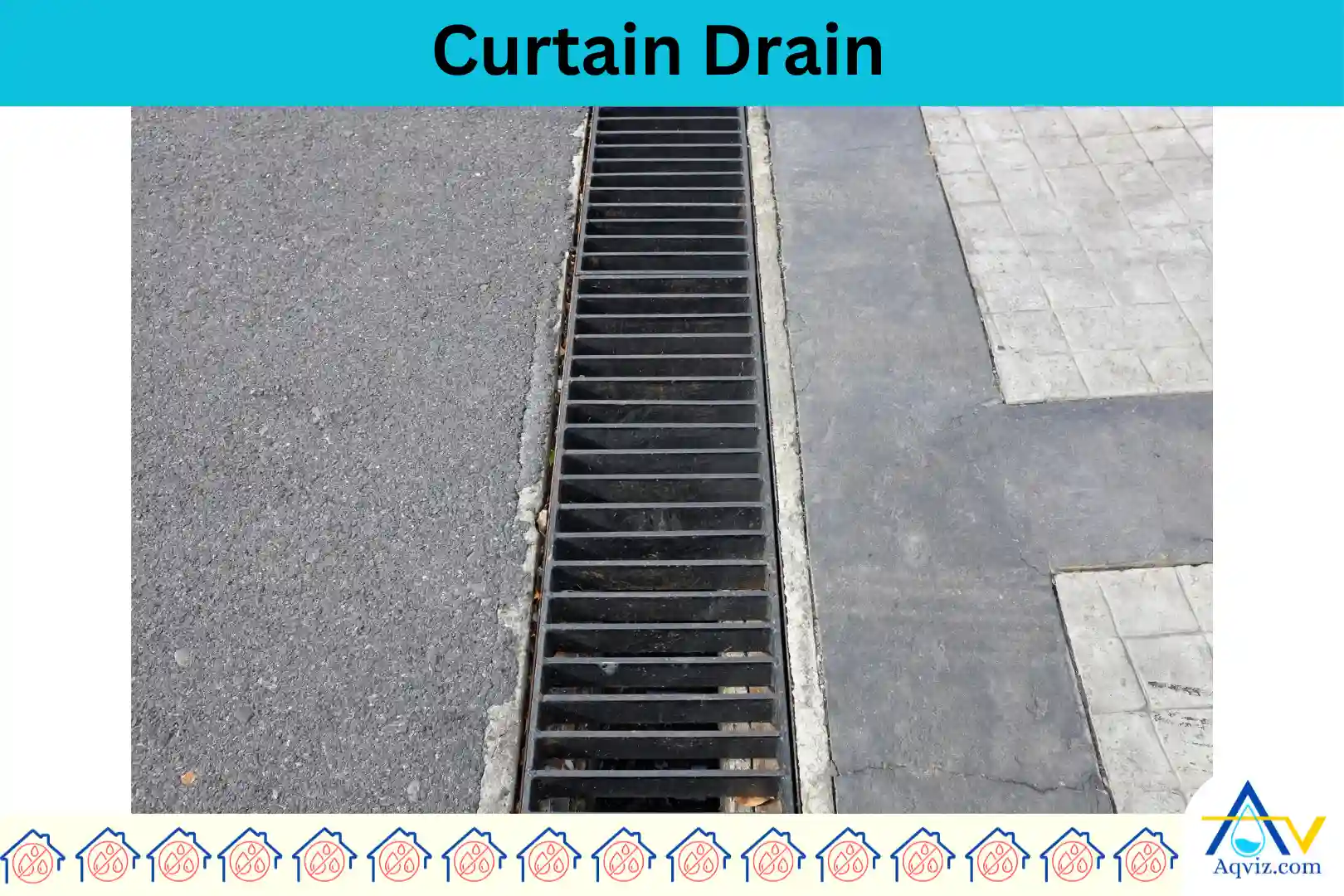

2. Curtain Drain
A curtain drain is a shallow French drain designed to intercept surface water before it reaches structures. It consists of a perforated pipe buried in a gravel filled trench, typically positioned uphill from a home or landscape feature. Its primary purpose is to divert water away from foundations, preventing pooling and soil erosion. Curtain drains are not as deep as traditional French drains. It is highly effective for managing surface runoff in areas with mild to moderate drainage concerns.
3. Trench Drain
A trench drain is a surface drainage system designed to quickly collect and redirect large volumes of water. Unlike traditional French drains, it features a long, narrow trench with a grated cover, allowing water to flow directly into an underground drainage system. A trench drain is installed in driveways, patios, garages, and pool decks. It prevents water accumulation and runoff related damage. Its efficiency lies in rapid water collection and dispersion. It ideal for areas with heavy rainfall or frequent water pooling areas.
4. Interior French Drain
An interior French drain is an indoor waterproofing solution designed to prevent basement flooding. An interior French drain is installed along the perimeter of a basement floor, it consists of a perforated pipe placed in a gravel filled trench. After water accumulation, it directs water to a sump pump to pump away from the basement. This system effectively manages hydrostatic pressure and groundwater intrusion and keeps basements dry. It is particularly useful in homes with high water tables or persistent basement leaks. It provides successful moisture control and structural protection over time.

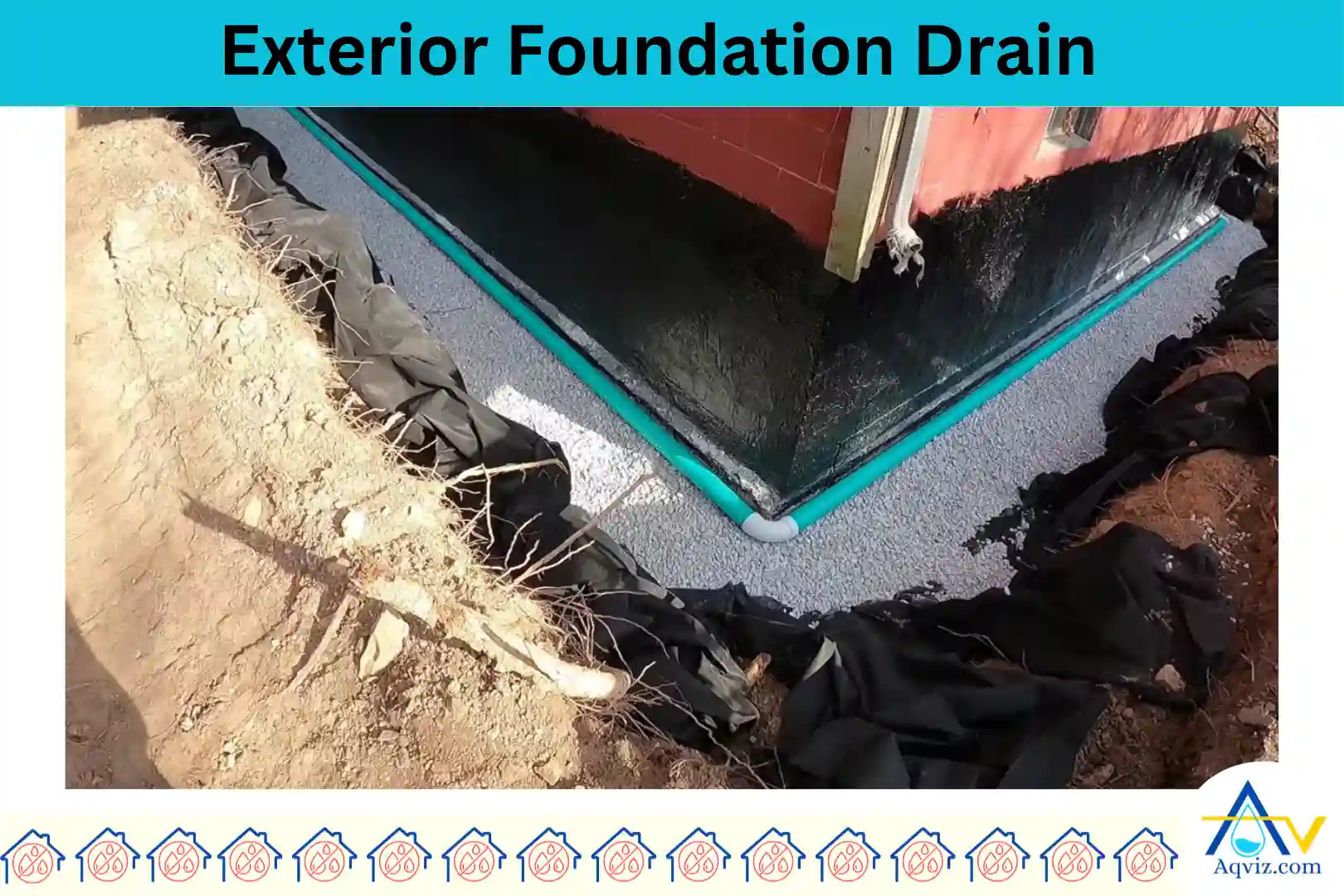

5. Exterior Foundation Drain
An exterior foundation drain is a French drain system installed around a building’s foundation to prevent water from seeping into the basement or crawl space. It consists of a perforated pipe placed at the footing level. It is surrounded by gravel and a filter fabric to block debris. This drain effectively redirects groundwater away from the foundation and reduce hydrostatic pressure. This helps to prevent structural damage to the foundation. Exterior foundation drain is highly efficient in homes with frequent basement water issues, but proper installation and maintenance are crucial for long term performance.
6. Gravel Free French Drain
A gravelfree French drain functions like a traditional French drain but replaces gravel with a prefabricated drainage system. There is a perforated pipe encased in synthetic aggregate or geotextile-wrapped foam. This design improves water flow while reducing the labor and cost of gravel installation. It is ideal for homeowners looking for a low maintenance and lightweight alternative to standard French drains. While effective for controlling subsurface water, it may have slightly lower durability than gravel-based systems.
7. Surface French Drain
A surface French drain is designed to manage excess water at ground level. It is a combination of a French drain and a surface drain that is installed in the same trench. Surface French drain prevents water pooling and soil erosion. It consists of a shallow trench filled with gravel or a perforated pipe, capturing runoff from rain or irrigation. Commonly used in lawns, gardens, and along driveways. It efficiently redirects water to a safe drainage point. While it works well for mild drainage issues, it is less effective for deep water table control compared to subsurface French drains.
8. Subsurface French Drain
A subsurface French drain is installed deep underground to manage groundwater and control soil saturation. It consists of a perforated pipe laid within a gravel filled trench, capturing excess moisture and directing it away from foundations, basements, or low lying areas. This system is ideal for properties with high water tables or persistent dampness, ensuring long term soil stability and foundation protection. Compared to surface drains, it is more effective for controlling deep water infiltration but requires precise installation for optimal performance.
9. Sump Pump Assisted French Drain
A sump pump assisted French drain combines a traditional French drain with a sump pump system to actively remove water from problem areas. Water collected in the drain is directed to a sump basin, where the pump expels it to a safe discharge point. This setup is particularly useful in low lying properties, basements, or areas with poor natural drainage. It provides superior water management in extreme conditions but requires regular maintenance and electricity to operate effectively.
10. Downspout Connected French Drain
A downspout connected French drain integrates with a home’s gutter system to redirect roof runoff away from the foundation. A buried perforated pipe extends from the downspouts, dispersing excess water into the surrounding soil or a drainage outlet. This system prevents foundation damage, erosion, and basement leaks caused by heavy rain. It is highly effective when properly sloped but requires periodic cleaning to prevent clogging from leaves and debris.
How to Unclog a French Drain?
You should follow these 7 steps to unclog a French drain
- Identify the clog in the French drain
- Remove the grate or cover
- Insert a garden hose to the drain
- Use a drain snake
- Power wash the pipe
- Flush with clean water
- Replace the grate or cover
