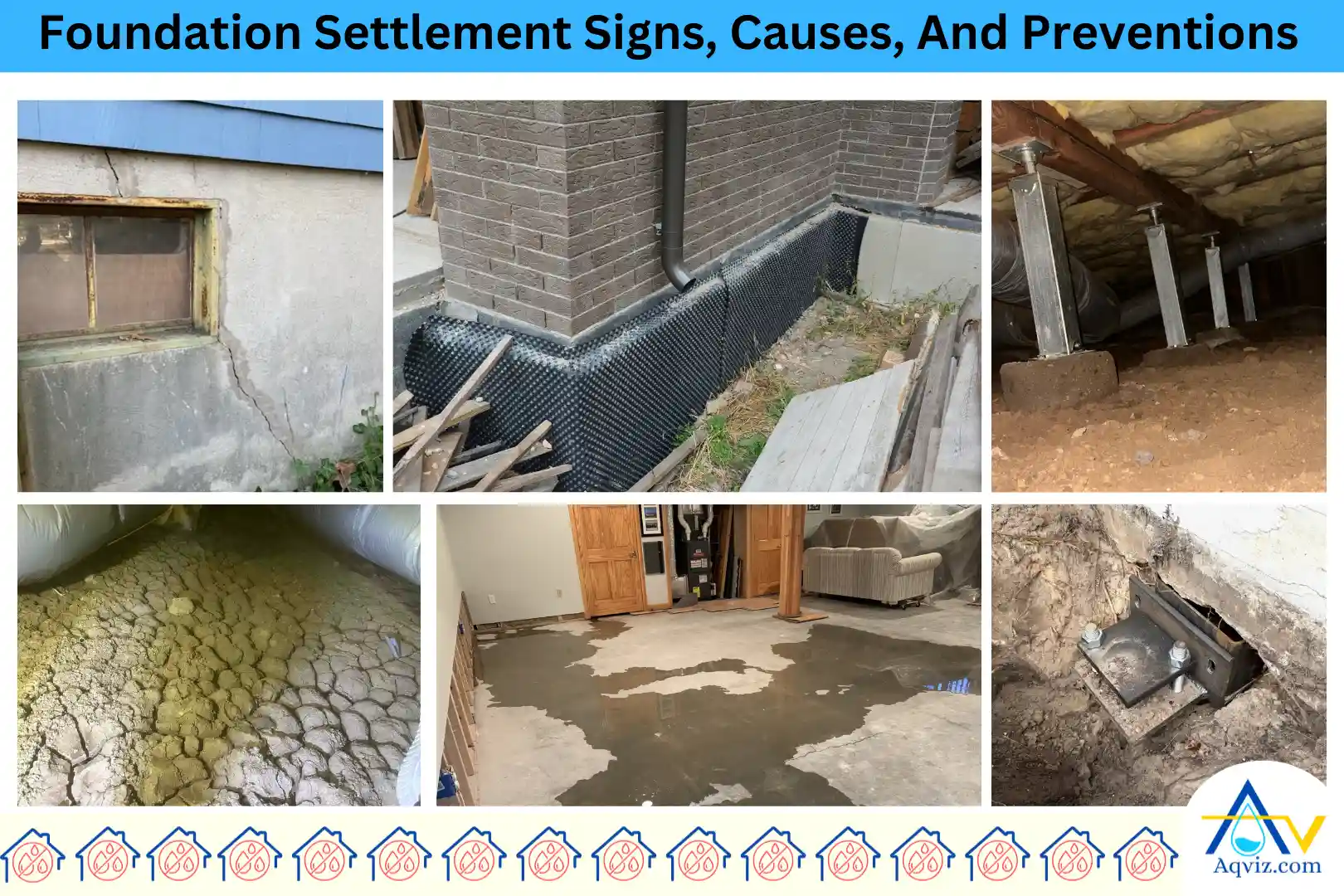

Ultimate Guide to Foundation Settlement Signs, Causes, And Preventions
Foundation settlement is a downward movement of a building’s foundation due to soil instability or inadequate support. Uniform foundation settlement and differential foundation settlement are two types of settlements. You can recognize some signs if your foundation is settling over time. Once you note them you should take essential action to control the foundation settlements.
Aqvize expert team has researched this matter for years and we could find the 10 most visible signs and 7 reasons for the foundation settlements. As well as we introduce you 7 successful prevention methods in this guide. If you have any concerns please reach us.
What is a Foundation Settlement?
Foundation settlement is a downward movement of a building’s foundation due to soil instability or inadequate support. This phenomenon occurs when the soil beneath a structure compresses or shifts due to improper moisture conditions. Foundation settlement depends on the type of foundation, depth of the foundation, and the soil bearing capacity. Foundation settlement leads to structural issues such as cracks, uneven floors, or misaligned doors and windows.
Some types of foundations are more prone to settlement than others. Shallow foundations, such as strip or pad footings, tend to settle more quickly than deep foundations like piles or piers, which are anchored into more stable soil layers. When the foundation is deep it interacts with different soil layers and it is highly resistant to settle easily.
As well as considering the soil type and bearing capacity, clay soil expands when wet and shrinks when dry causing structural instability. Loose or poorly compacted fill soil settles over time under the weight of a building due to lower bearing capacity. Sandy soil may shift or erode due to water infiltration under the foundation.

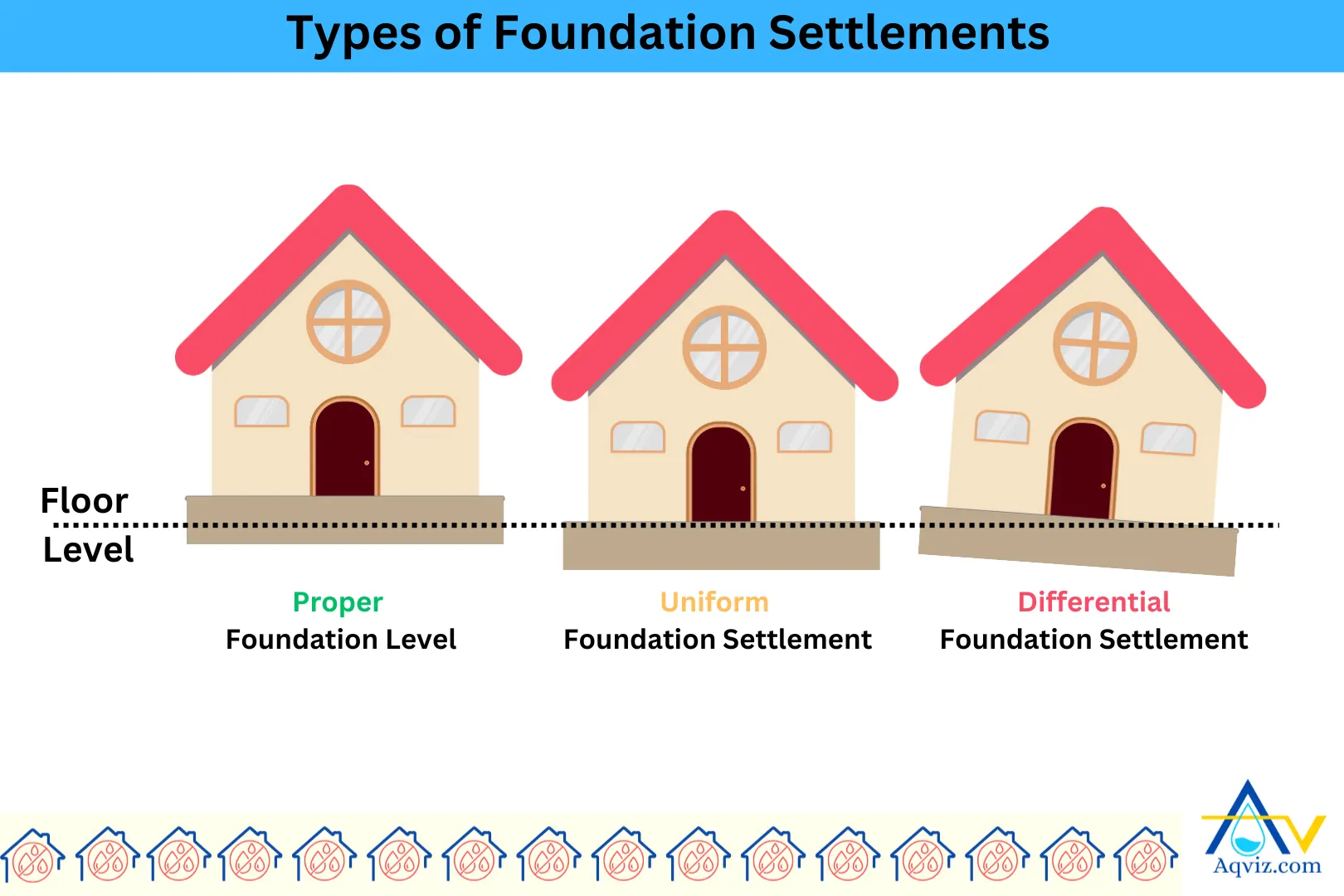

What are the 2 Types of Foundation Settlement?
2 Types of foundation settlements are,
- Uniform Foundation Settlement: This occurs when the entire foundation sinks at the same rate. It typically happens when the building is constructed on soil with consistent bearing capacity and uniform loading. While it may not cause significant structural damage, it can lead to plumbing misalignment, door jamming, and minor cosmetic cracks.
- Differential Foundation Settlement: This happens when different parts of the foundation settle at varying rates, leading to uneven movement. It occurs due to variations in soil composition, moisture levels, or improper foundation design. Differential settlement is a major concern as it can cause cracks in walls, tilting of the structure, misaligned windows and doors, and even partial foundation failure.
Aqviz experts have observed that differential foundation settlements tend to damage building structures more heavily than uniform settlements. So we recommend you to use a foundation specialist before constructing the foundation.

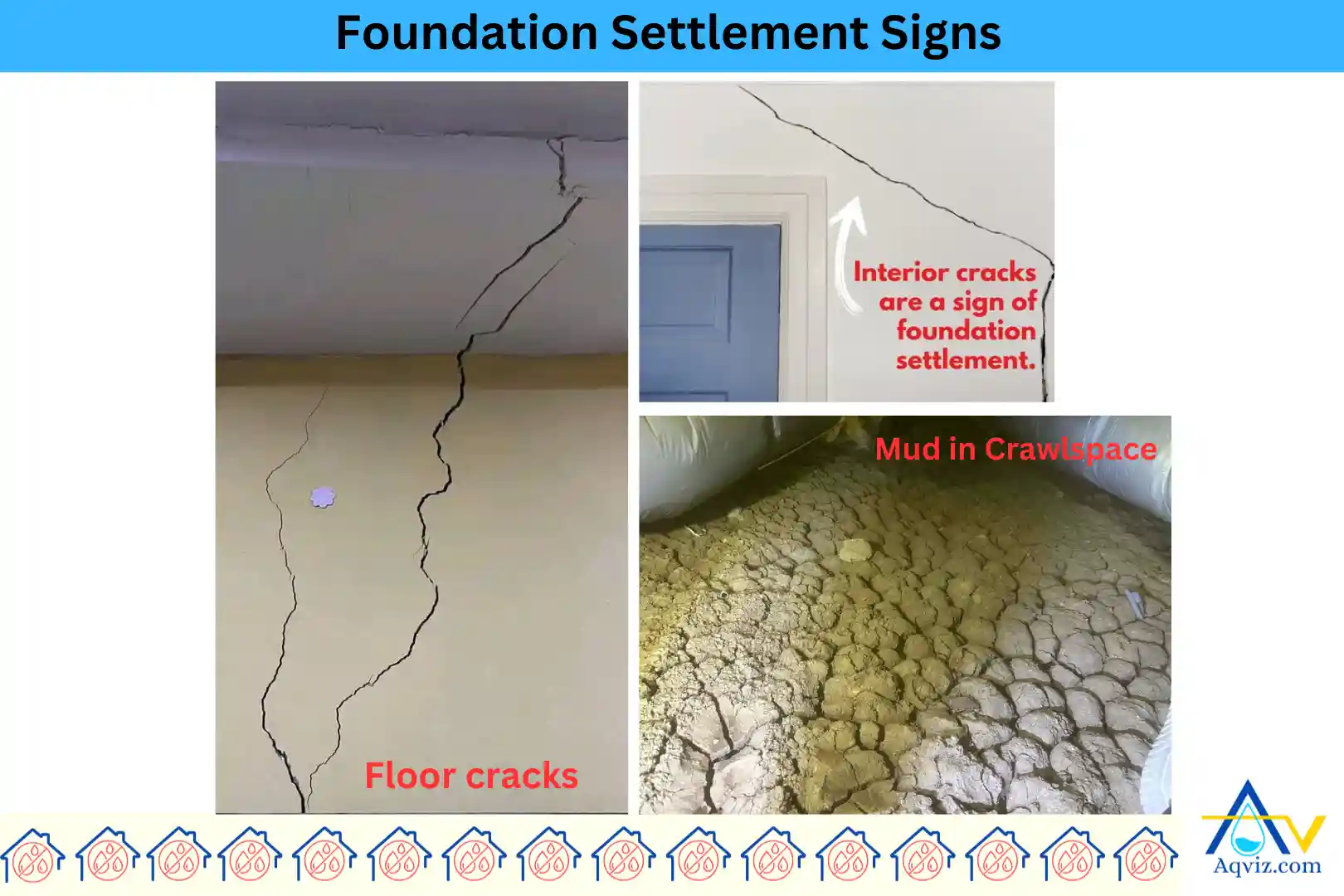

What are the Signs of Foundation Settlement?
Foundation settlement can be recognized by these 10 signs.
- Cracks in foundation floors and walls
- Sticking foundation door and windows
- Gaps around the foundation door and windows
- Uneven or sloping floors
- Leaning or tilting the chimney
- Separation of walls from ceiling or floors
- Continuously plumbing issues and slab leaks
- Regular basement flooding
- A musty odor in the basement
- Mud water from the French drain
If you see these signs, we highly recommend that you to contact a foundation expert, or a waterproofing expert to solve this properly. Do not try for any DIY fixes. It may increase the settling process if it is not handled in a proper way.
What are the Causes of Foundation Settlement?
These are the 7 causes for foundation settlement if you see the above signs.
- Weak or poorly compacted foundation footing: If the soil beneath a foundation isn’t compacted properly before construction, it compresses under the structure’s weight, leading to settlement.
- Expansive soils: Clay rich foundation soils expand when wet and shrink when dry. It causes to inconsistent foundation movement that results in differential settlement.
- Erosion and water damage: Poor drainage, heavy rainfall, or plumbing leaks can wash away soil beneath the foundation.
- Tree roots and vegetation: Trees and large shrubs absorb moisture from the soil, causing shrinkage and uneven foundation support.
- Excessive load on the foundation: Adding additional weight, such as a second story extension, without reinforcing the foundation can lead to sinking or cracking over time.
- Nearby excavation or vibrations: Construction work, underground tunneling, or excessive vibrations from machinery can destabilize the soil and foundation.
- Natural disasters: Earthquakes, floods, and shifting groundwater tables can alter soil conditions and contribute to foundation settlement.
Aqviz experts highly recommend you minimize these causes as much as possible.
How to Prevent Foundation Settlement?
You should follow these steps to prevent the foundation settlement
- Conduct a proper soil analysis before foundation construction
- Ensure proper soil compaction during foundation construction
- Install a well-designed drainage system in the foundation
- Use a proper foundation type for the soil condition
- Maintain moisture balance in the soil
- Protect against erosion and soil washout
- Address foundation cracks and minor settlements early

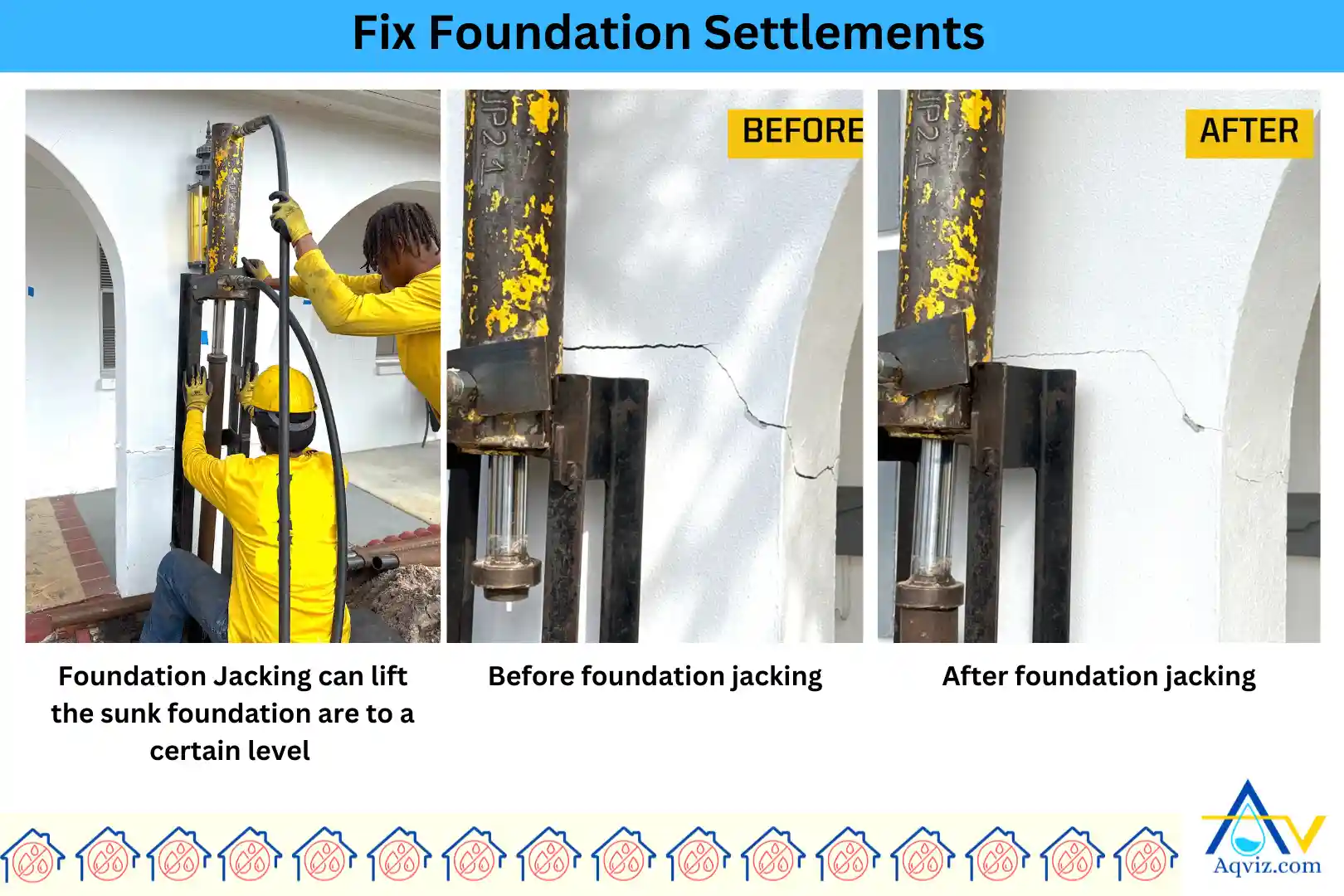

- Reinforce existing foundations when needed
Read more: All About Foundation Cracks: Causes, Types, Repairing and Preventions
Can Foundation Waterproofing Stop the Settlement?
No, foundation waterproofing cannot stop settlement because settlement is caused by soil movement, poor compaction, or load imbalance. However, waterproofing helps prevent erosion, soil washout, and moisture-related soil instability, which can reduce the risk of settlement over time.
Read more: How to waterproof a foundation?
What are the Foundation Materials?
The most used foundation materials are,
- Concrete
- Steel
- Stone
- Bricks
- Cement blocks
- Wood
