Roof Pitch: Slope Calculation, Impacts and Advices

Written By Adam Paul - Waterproofing Expert

Roof pitch is the steepness or incline angle of a roof. The roof pitch is defined as the ratio between the vertical rise and the horizontal span (run). Roof pitch is stated as run over rise ratio. Roof pitch can be expressed as inches for the rise per 12 inches of run. Normally, it is expressed as a proportion. Roof pitch are mainly two types: high pitch and low pitch are them. 1:12 is a lower pitch while 8:12 is a steep pitch.

Roof pitch can be varied with the roof type. Gable-type roofs have a higher pitch, while flat roofs have a lower pitch. Before you install a roof, you should calculate the roof pitch. Roof pitch significantly affects the roof drainage efficiency, snow load performance, wind resistance, structural support, and ventilation. and roofing materials.

As waterproofing experts, we highly recommend you to install a waterproofing membrane on the lower slope pitch to protect it from prolonged water damages.

What Is the Definition of Roof Pitch?

Roof pitch is the steepness or incline angle of a roof. The roof pitch defined as the ratio between the vertical rise and the horizontal span (run). Roof pitch express as “X inches of rise per 12 inches of run.” A high roof pitch typically measures 9:12 or more, while a low roof pitch measures 3:12 or less.

Roof pitch plays a critical role in shaping the geometry of the roof, rainwater drainage, and snow load handling. Steeper pitches shed water faster and reduce pooling, which helps prevent leaks and extends roofing material lifespan.

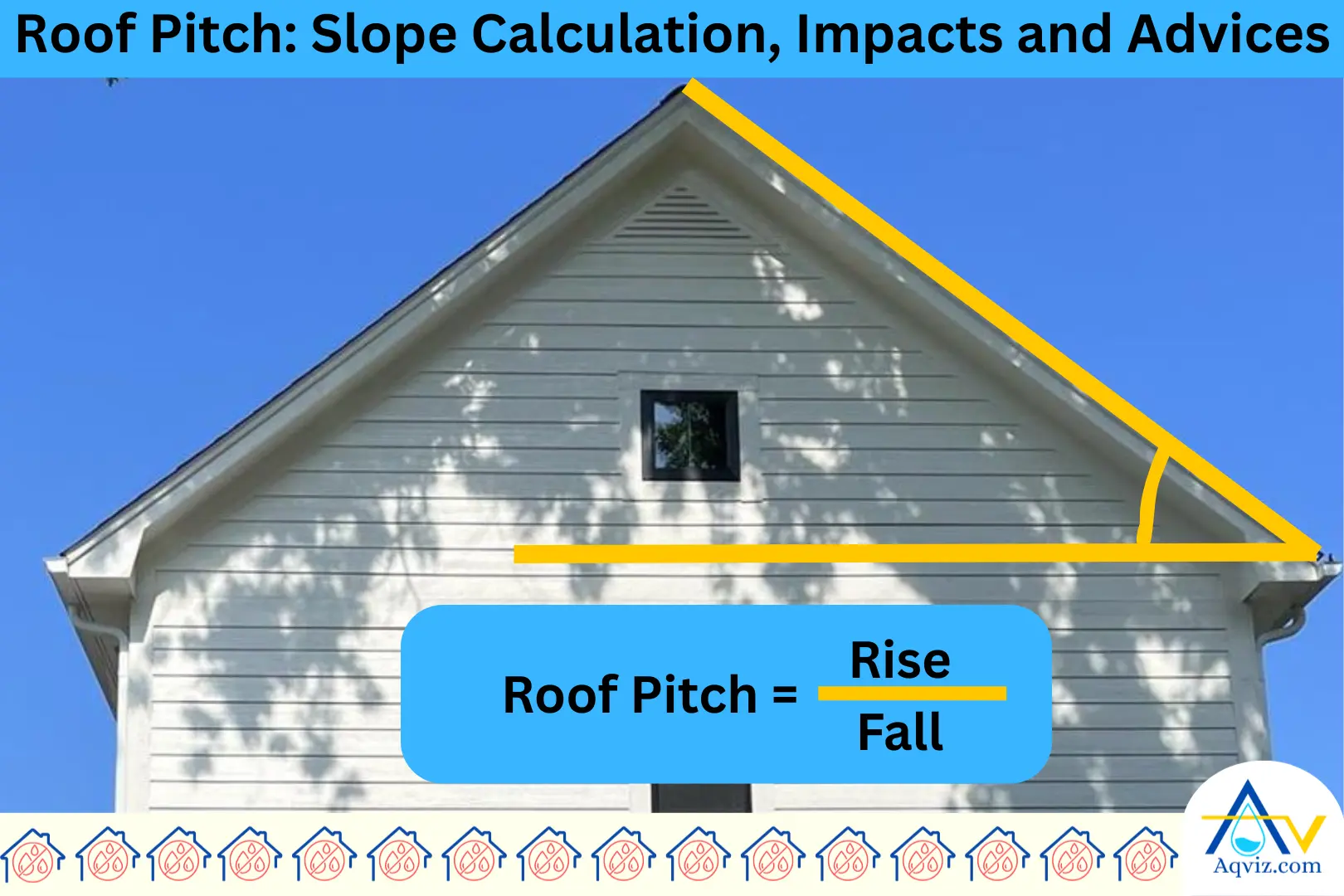

How to Calculate Roof Pitch?

To calculate roof pitch, use the formula:
Roof Pitch = Roof Rise ÷ Roof Run
Then express it as “X:12”.

For example, if a roof rises 6 inches over a 12-inch horizontal span, the pitch is 6:12.

To calculate roof pitch you can use both manual tools like a level and tape measure and digital roof pitch calculators. We place a level horizontally on the slope, measure the vertical distance (rise) at the 12-inch mark (run), and then use the result to determine the roof’s pitch. It’s a simple yet essential step before selecting waterproofing membranes or drainage systems.

What Is the Rise Over Run Ratio?

The rise over run ratio defines the steepness of a roof by comparing the vertical change (rise) to the horizontal distance (run). It’s written as a fraction or ratio, such as 4:12, meaning the roof rises 4 inches for every 12 inches it runs horizontally.

In roofing geometry, this ratio influences load-bearing requirements, drainage efficiency, and the selection of underlayment or waterproofing systems. At Aqviz, we pay close attention to this ratio during inspections, especially on low-slope roofs where water tends to drain more slowly and demands more robust sealing methods.

What Is the Recommended Roof Pitch?

The recommended roof pitch for an efficient roof is typically 4:12 to 6:12, which offers the best balance for water runoff and snow shedding. This range provides enough slope to allow gravity to carry water and melting snow off the roof quickly, without being too steep to maintain or walk on.

We’ve found that low-slope roofs below 3:12 often struggle with water pooling, requiring enhanced roof waterproofing systems like torch-on membranes or liquid-applied coatings. On the other hand, steep-sloped roofs above 9:12 are excellent in snowy climates but need strong framing and specialized safety measures during installation.

What Is Roof Pitch Chart?

A roof pitch chart is a visual reference tool that displays common pitch ratios (like 3:12, 6:12, 9:12) alongside their corresponding angles in degrees. It helps contractors, architects, and homeowners quickly determine the slope and understand its functional and aesthetic impact.

At Aqviz, we use pitch charts during site evaluations and design meetings. To prepare one, list pitch ratios on one side and their degree equivalents next to them. This chart aids in selecting materials, planning water drainage, and ensuring code compliance. It simplifies communication between clients and installers when discussing roofing geometry and waterproofing solutions.

What Are the Two Types of Roof Pitch?

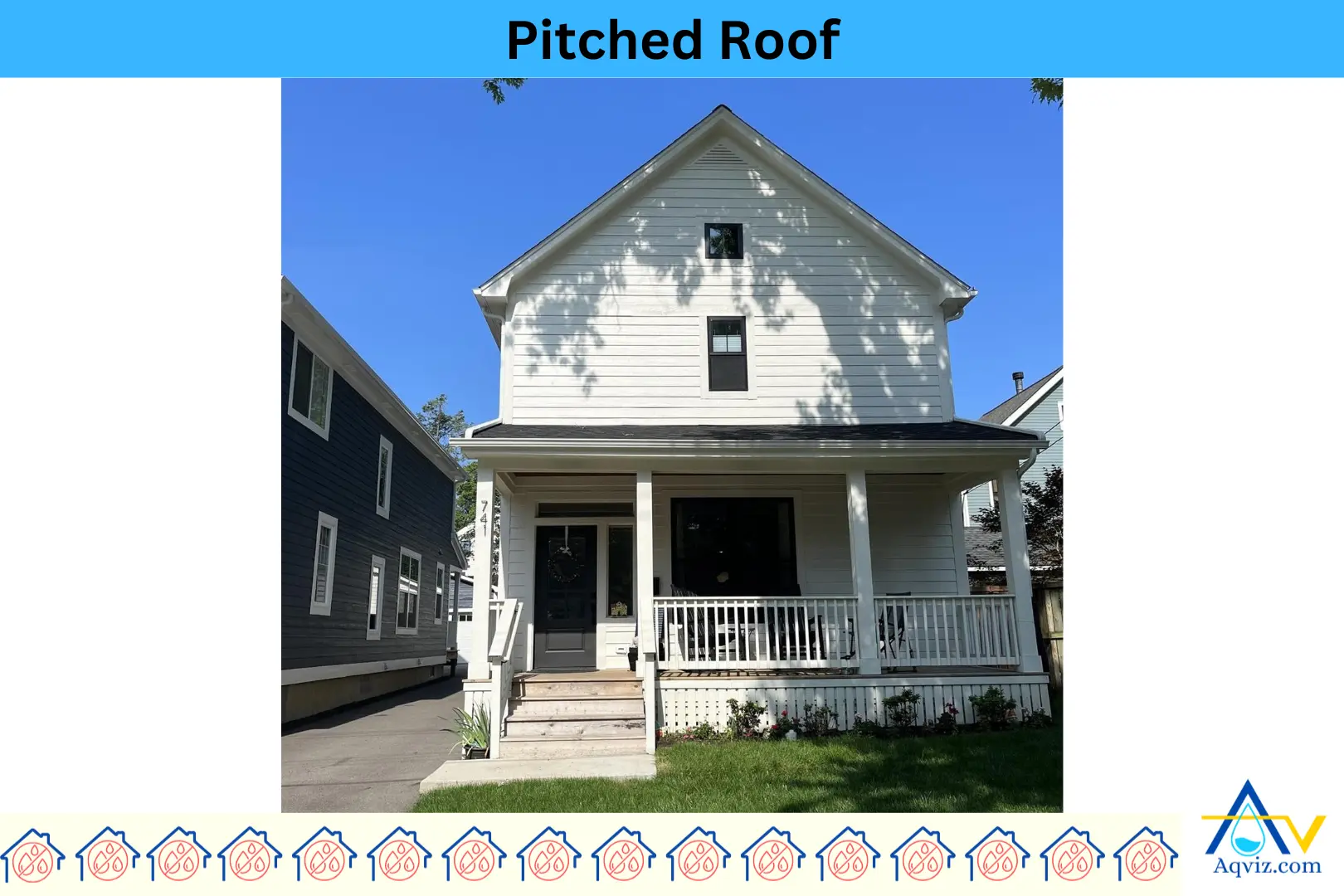

There are two main types of roof pitch: high-pitch and low-pitch roofs. A high-pitch roof usually ranges from 7:12 to 12:12 or more. It provides a steep slope that improves water runoff and snow shedding. These roofs are common in colder or rainy regions and support materials like shingles, tiles, or metal panels.

A low-pitch roof, often between 1:12 and 3:12, has a flatter profile that’s more prone to water pooling. At Aqviz, we use specialized waterproofing systems like EPDM membranes or modified bitumen to prevent leaks on low-slope roofs. Each type impacts drainage design, aesthetics, and maintenance needs.

How Does Roof Pitch Affect the Roof?

Roof pitch significantly affects drainage efficiency, snow load performance, wind resistance, structural support, ventilation, and roofing material

How Does Roof Pitch Affect Drainage Efficiency?

Roof pitch directly impacts drainage efficiency by determining how fast water flows off the surface. A steeper roof pitch, such as 6:12 or greater, allows rainwater to drain quickly by gravity, minimizing the chance of pooling, seepage, and membrane stress.

As waterproofing experts, we’ve noticed that low-pitched roofs under 3:12 require carefully engineered drainage systems like wide gutters, internal drains, and waterproof membranes to handle slow runoff. Poor pitch can cause water stagnation, leading to leaks, mold, and structural wear over time. Optimizing pitch ensures smoother water flow and reduces the long-term burden on waterproofing systems.

How Does Roof Pitch Affect Snow Load Performance?

Roof pitch plays a crucial role in handling snow load performance. High-pitched roofs (above 6:12) encourage snow to slide off naturally. A high-pitch roof reduces the weight stress on the structure and preventing ice dams. These roofs are ideal in heavy snowfall areas where snow accumulation can become hazardous during winter.

Low-pitched roofs tend to retain snow and increase the static load and raising the risk of sagging or collapse if not properly reinforced. In order to prevent this you should always calculate pitch carefully when designing roofs for cold climates and apply extra waterproofing and structural bracing to low-slope systems where snow sits longer on the roof.

How Does Roof Pitch Affect Wind Resistance?

Roof pitch influences how a roof handles wind uplift and pressure distribution. Low-pitched roofs (below 4:12) offer higher wind resistance because their flatter surface presents less vertical face area to catch wind. Low roof pitch reduces the uplift pressure and structural stress during the wind.

On the other hand, high-pitched roofs (above 7:12) are more vulnerable to wind uplift, especially in hurricane in coastal areas. To improve the wind resistant of the roof you should reinforce steep slopes with stronger fasteners, ridge bracing, and wind-rated materials. In windy zones, we often recommend a moderate pitch like 4:12 to 6:12 for a good balance of drainage and wind performance.

How Does Roof Pitch Affect Structural Support?

Roof pitch directly affects the structural load distribution and framing complexity. A steeper pitch shifts loads more vertically to the walls, allowing efficient snow and water shedding but requiring taller trusses and longer rafters, which increases material and labor demands.

Conversely, low-pitched roofs distribute weight more horizontally, needing stronger deck support and waterproofing to resist pooling and static loads. At Aqviz, we customize the roof frame design based on pitch, using heavier structural lumber and tighter spacing for low slopes, while reinforcing ridge beams and load paths for high-pitched designs to maintain long-term durability.

How Does Roof Pitch Affect Ventilation?

Roof pitch influences attic space volume and airflow circulation, which are key to effective ventilation. High-pitched roofs create more space between the ceiling and roof deck, allowing for better air movement through ridge vents, soffit vents, and gable vents.

Steeper roofs support natural convection. Steeper roofs les hot air to rise and exit more efficiently. This prevents moisture buildup, mold, and heat transfer into living spaces. Low-pitched roofs often require mechanical ventilation systems or enhanced vent design due to restricted airflow and reduced attic volume.

How Does Roof Pitch Affect Roofing Material?

Roof pitch affects the suitability of roofing materials based on their water-shedding ability. Below are the different types of roofing materials and the recommended roof pitch.

At Aqviz, we follow these guidelines:

Asphalt shingles: Recommended for pitches above 4:12
Clay or concrete tiles: Best on roofs above 4:12, ideally 6:12 or more for water runoff
Metal panels: Suitable for 3:12 and up, with standing seam types performing well even on low slopes
EPDM or TPO membranes: Designed for low-pitched roofs, typically below 2:12
Roll roofing or modified bitumen: Effective on 1:12 to 3:12 slopes

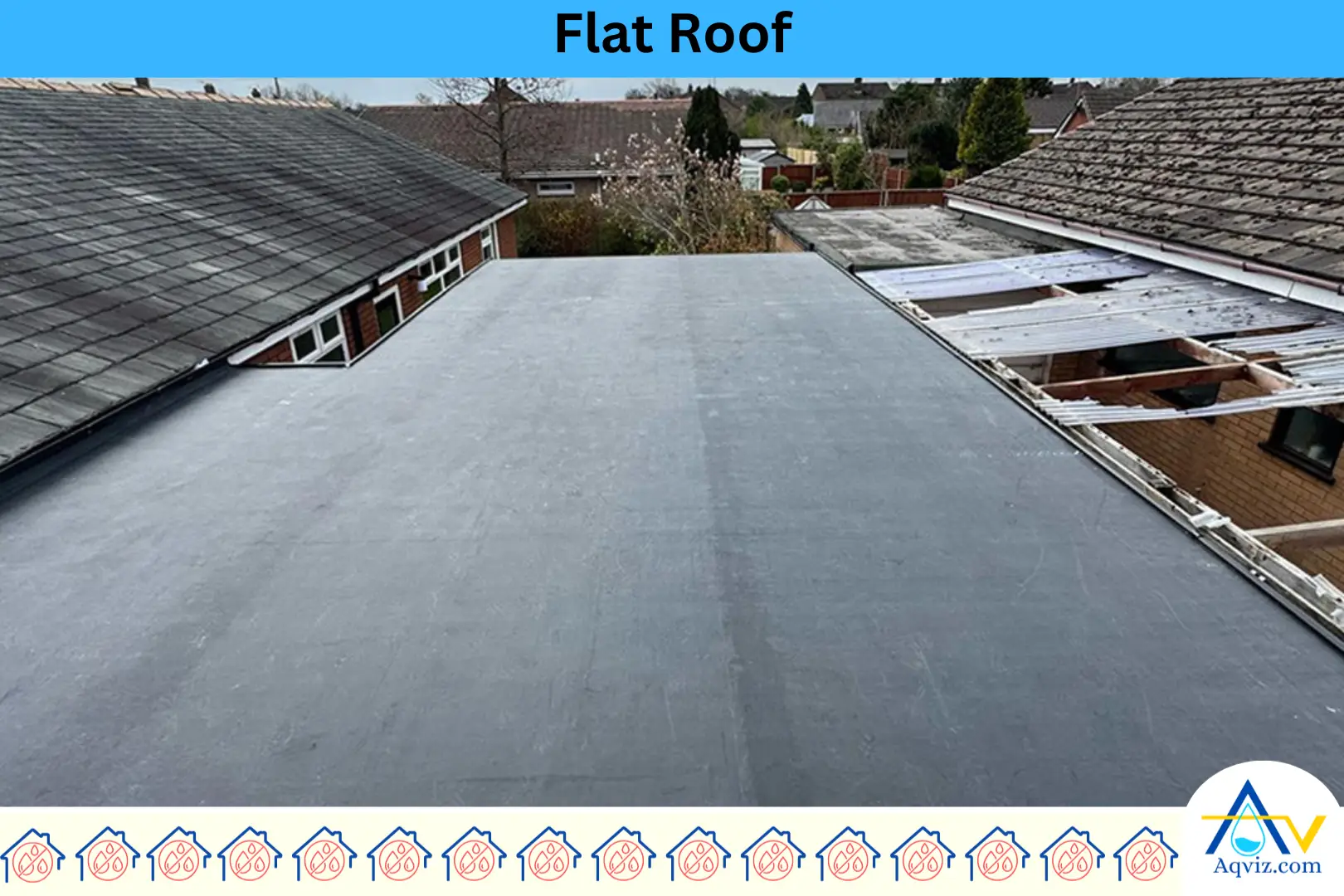

What is the Pitch of a Flat Roof?

The pitch of a flat roof typically ranges from ¼ inch to ½ inch per foot, which translates to a pitch ratio of 1:48 to 1:24, or roughly 0.5:12 to 1:12. Flat roofs should be designed with this minimal slope to prevent water stagnation, which is a common cause of membrane failure and leakage. Flat roofs must include proper waterproofing systems like EPDM, TPO, or modified bitumen, along with internal drains or scuppers to ensure efficient runoff.

What are the Types of Roofs?

These are the most used 9 types of roofs

Gable roof
Hip roof
Mansard roof
Gambrel roof
Shed roof
Butterfly roof
Bonnet roof
Flat roof
Low-slope roof
