18 by 24 inches is the minimum size for a crawl space access door opening, and that figure describes the hole in the foundation, not the panel that covers it. Get the opening, the gasket, and the latch right, and the door stops being a problem you think about once a year.
A crawl space access door fails far more often on fit than on looks. A panel an inch too small leaves a gap you can feel with a fingertip on a cold morning. A panel too heavy for its hinges sags, and the same gap opens at the top corner.
The choice of door follows one question about the space underneath, whether it is vented to the outside or sealed. That answer settles the gasket, the hardware, and whether the panel needs louvers in it.
Crawl Space Access Door Size and Rough Opening
Measure the rough opening before you shop. The code minimum of 18 inches wide by 24 inches high applies to the clear opening a person passes through, and the panel is cut larger than the opening so it can land on the frame and compress a gasket against it.
The International Residential Code sets that minimum in Section R408.4. Anyone who has crawled into a space through a 24-inch-high opening while wearing knee pads and carrying a cordless drill knows what the number represents: a floor for the code, not a comfortable working dimension.
Retail doors cluster around the common sizes. Vestal’s steel crawl space door at Lowe’s is listed at 24.25 inches wide by 32.125 inches long, which covers a code-minimum opening with frame room to spare. Houses with a wider opening, often the ones with a full basement-style foundation wall, need a panel quoted from the rough opening instead.
Watch how the opening sits relative to the outside grade. FEMA’s guidance for crawl spaces asks for the floor of the space to sit at or above the lowest grade next to the building, so surface water runs away from the foundation. A door planted at a low corner passes water around its bottom edge regardless of gasket thickness.
Sealed or Vented: The Choice That Sizes the Door
A vented crawl space needs net vent area of 1 square foot for every 150 square feet of floor area. Cover the ground with a Class I vapor retarder and the allowance drops to 1 square foot per 1,500, close to a tenth of the openings the bare-earth case calls for.
Those two ratios come from the code text, and they decide whether a door needs louvers cut into it, needs an airtight gasket, or needs both because the space is halfway converted. Where the ground stays bare, the foundation vents do the drying, and they need covers with corrosion-resistant mesh no larger than 1/4 inch, or wire mesh no larger than 1/8 inch. That mesh size is the difference between a mouse staying outdoors and a mouse spending the winter between your floor joists.
A 1,200-square-foot crawl space comes to 8 square feet of net vent area over bare earth, or 0.8 square feet once a liner is down.
A sealed space flips the job. Once the ground carries a 6-mil Class I vapor retarder, the code lets the vent allowance shrink to almost nothing, and the space needs a drying mechanism in exchange: continuously operated mechanical ventilation at 1 cubic foot per minute for each 50 square feet of ground area, or conditioned air routed through the space. At that point the door is part of the air barrier, and its job changes from covering a hole to holding a seal.
Seal the door and leave the foundation vents open, and the space gets worse, not better. Outside air keeps arriving through the vents, the door and the ductwork inside stay cool, and moisture condenses on surfaces at or below the dew point. A 2005 U.S. Department of Energy field study of homes in the Southeast measured the other approach, and crawl spaces with sealed vents, sealed ground liners, and insulated walls used substantially less space-conditioning energy than the wall-vented control houses.
A crawl space door with a vent in it belongs to the first case. If the space is still vented, count the louvers toward the net vent area and size them with the same 1-to-150 ratio. If the space is moving toward sealed, fill the old vents with rigid foam, seal the edges with spray foam or caulk, and hand the drying duty to a dehumidifier or a conditioned-air path.
Materials, Prices, and Hardware
Plastic panels sit at the cheap end, roughly $12.35 to $35.30. A molded crawl space door with its own frame runs about $77.50 to $125.50, a custom PVC door is quoted from your rough opening, and steel adds security at more weight.
| Option | Typical price | Where it fits |
|---|---|---|
| ABS plastic panel (E-Z Access) | $12.35 to $35.30 | Small openings and mild climates, as a cover over an existing frame |
| Molded crawl space door with frame (E-Z Access small frame, insulated model) | $77.50 to $125.50 | Replacing a full opening; the insulated panel suits a sealed system |
| Custom PVC door (Curb Appeal Products) | Quoted per opening | Walls with high sun, salt, or spray exposure; ordered by rough opening, handing, and overlay, inset, or surface mounting, with stainless hardware |
| Galvanized steel door (Vestal, 24.25 in by 32.125 in at Lowe’s) | Retail price varies by store | Security and heavy pest pressure where the extra weight is acceptable |
| Pressure-treated plywood with rigid foam | Lowest material cost | Interior hatches and tight budgets; depends on a well-sealed frame to last |
Hardware is where a cheap door gives itself away. Stainless hinges and fasteners belong on any exterior panel, and they are not optional in coastal air or on walls that catch road salt through the winter. A piano hinge spreads the load along the full edge and holds the panel in a straight line; two small hinges concentrate the same load at the corners.
The latch does the sealing work. It needs to pull the panel against the frame, not merely hold it shut. A hook and eye or a loose barrel bolt leaves the gasket relaxed across the middle of the span, and that relaxed section is where air and insects find their opening.
Treated wood works when the panel is thick enough to hold its shape and sits against rigid foam on the inside. A 1/4-inch plywood face, which one DIY guide lists as the material for a crawl space door, behaves more like a lid than a door, cupping with the seasons until a gap opens at one corner. Damp wood in that position rots along the bottom edge long before it warps back into shape.
Installing the Door: Frame, Foam, Gasket, Latch
The working order is frame, foam, sealant, gasket, then latch. Each step closes a path the next one cannot reach, and the sequence follows the crawl space guidance published by Pacific Northwest National Laboratory for the U.S. Department of Energy’s Building America program.
Start at the frame. Add blocking where the hinges land if the foundation is block, and check the opening for square with a diagonal measurement before cutting anything. An out-of-square frame shows up later as a gap at one corner that no gasket thickness can fill.
Insulate the panel from the inside. Glue rigid foam board to the back of the door, cut to the panel’s own size so the foam clears the frame. The assembly stays light, gains stiffness, and puts insulation at the one spot in the wall that is thinnest.

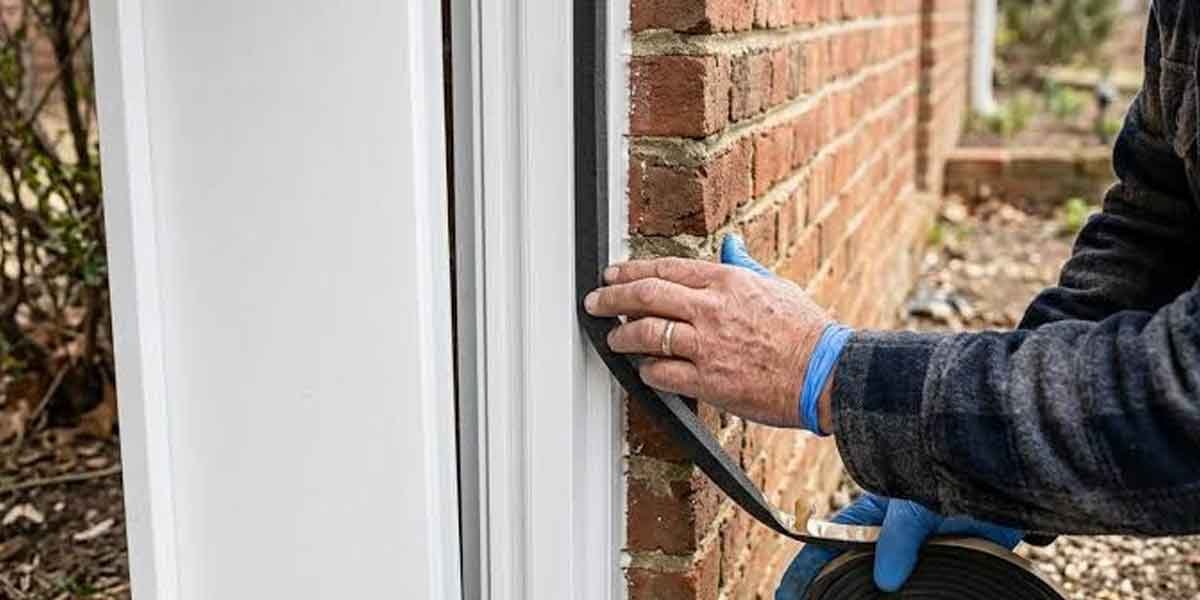

Then seal in two places. Caulk around the outside of the framing, and install weather stripping around the inside of the frame. Caulk closes the path behind the frame; the gasket closes the path between frame and panel. A latch that pulls the crawl space access door firmly against the frame finishes the seal and keeps the gasket under compression.
Test it with a light. Close the panel on a sunny afternoon, stand inside with the light switched off, and look for a bright line at the perimeter. Every visible line gets another turn on the latch, a thicker gasket, or a shim behind the hinge. The check takes five minutes and catches the leaks that otherwise show up as a damp crawl space next spring.
Interior Hatches Follow Different Rules
An interior hatch never sees wind or rain, so metal hardware and heavy gaskets matter less. What it needs is a flush fit with the floor, enough stiffness to take a step, and a seal against the air path that runs between the crawl space and the rooms above.
Most interior hatches are built as a frame of construction lumber, a panel of plywood or MDF, and the same flooring finish used in the surrounding room. The panel hinges inward when there is headroom below for the swing, and rigid foam on its back keeps the hatch from becoming the coldest square foot of the floor.
Air sealing is what separates a hatch that works from one that gets blamed for a cold room in February. Spray foam or caulk around the frame perimeter, plus a gasket where the panel meets it, closes the route that the stack effect uses to draw crawl space air upward into the house.
What Fails First, and the Signs Worth Checking
Water and time attack the gasket, the fasteners, and the panel, usually in that order. A five-minute inspection each fall catches all three before they add up to a wet crawl space.
Weather stripping goes first. Its adhesive backing releases, the foam tears, or insects chew it, and a panel that sealed last winter now leaks around three sides. Pull the old strip, clean the surface, and install a new one. The frame itself rarely needs replacing.
Panels are next. An untreated or unsealed wooden panel warps and delaminates while the space stays humid, which points to a leak, poor drying, or a vent left open after the space was sealed. Find the moisture source before hanging a new panel, or the replacement follows the first one into the same state. Check the caulk line where the frame meets the foundation while you are down there. A crack behind the frame carries air past the gasket no matter how tight the latch is, and a polyurethane caulk holds that joint longer than the latex many installers reach for.
Hardware fails quietly. Rust on a hinge that is supposed to be stainless says the door faces more salt or spray than the hardware was chosen for, and swapping in a stainless or polymer hinge settles it.
Replacement gaskets and hinges cost less than a service call.
Crawl Space Access Door: Common Questions
What size should a crawl space door opening be?
The minimum clear opening is 18 inches wide by 24 inches high under IRC R408.4, and the panel is cut larger so it rests on the frame. When replacing an existing crawl space access door, order to the rough opening you measure rather than to the old panel’s dimensions.
Does a crawl space door need to be vented?
It needs ventilation only if the space belongs to a vented system. A vented crawl space requires 1 square foot of net vent area per 150 square feet of floor area, and that allowance can sit in the door louvers. With a Class I vapor retarder on the ground, the ratio drops to 1 per 1,500 and the door can be sealed.
Can I install a crawl space door myself?
Yes, when the opening is reasonably square and the panel is light. The work is blocking, a frame, a gasket, caulk, and a latch that pulls tight, all within reach of a homeowner with a drill and a caulking gun. Concrete cutting, openings below grade, and heavy steel panels are the cases worth hiring out.
Which material lasts longest on a crawl space door?
Molded plastic and PVC last longest on an exterior wall because they do not rot and need no paint. Steel trades weight and rust risk for security, and treated wood with rigid foam glued to the inside works when the frame is sealed well enough to keep the panel dry.
The frame, the gasket, and the latch decide how the door performs. The panel is the easy part to get right.
